SCH8O/DIN UPVC/CPVC Ⅰ Ball Valve

The UPVC/CPVC I ball valve is a high-performance valve designed for industrial pipelines and water treatment systems. Its simple yet efficient design, featuring a spherical valve core, provides extremely low fluid resistance when fully open or closed. The valve’s quick opening and closing and ease of operation make it perform excellently in pipeline control.

Our product boasts sealing performance with high-quality sealing rings, ensuring leak-free operation and extending the equipment's service life. The lightweight nature of the UPVC/CPVC I ball valve makes it easy to install and maintain, and it is widely used in industries such as chemical processing, pharmaceuticals, drinking water treatment, and HVAC systems.

Makipag-ugnayan sa Amin

Nakaraang：SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve
Susunod：SCH8O/DIN UPVC/CPVC Union Diaphragm Valve

parameter aplikasyon Mga Pamantayan sa Teknikal

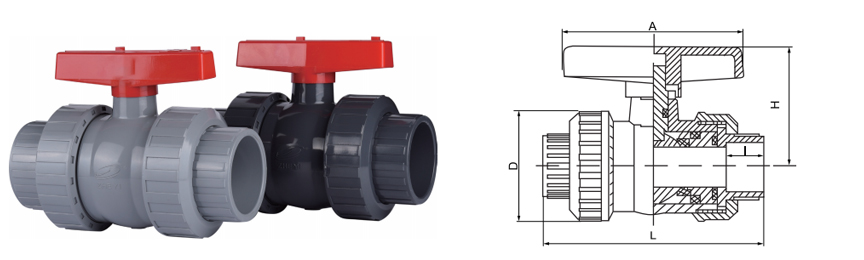

dn	DN	Structure size
